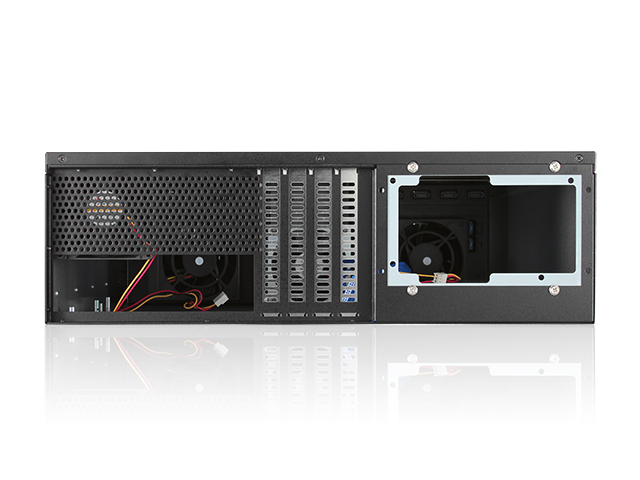

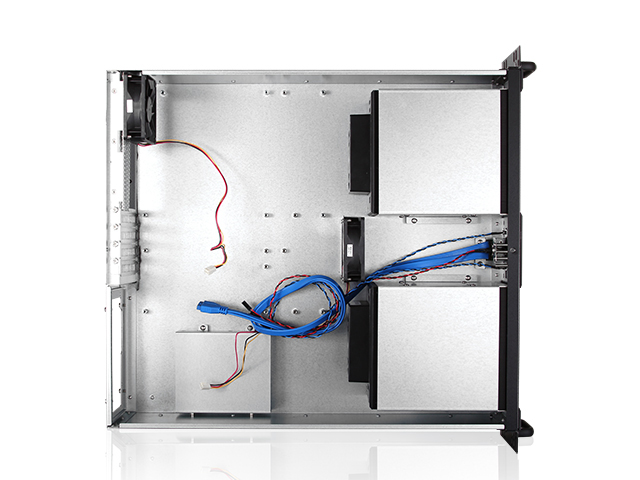

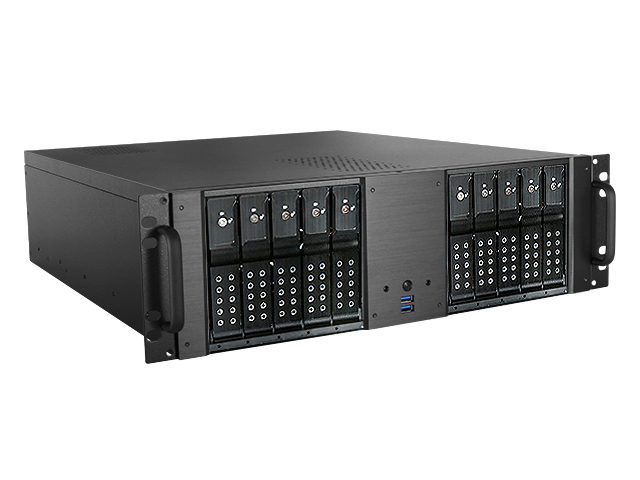

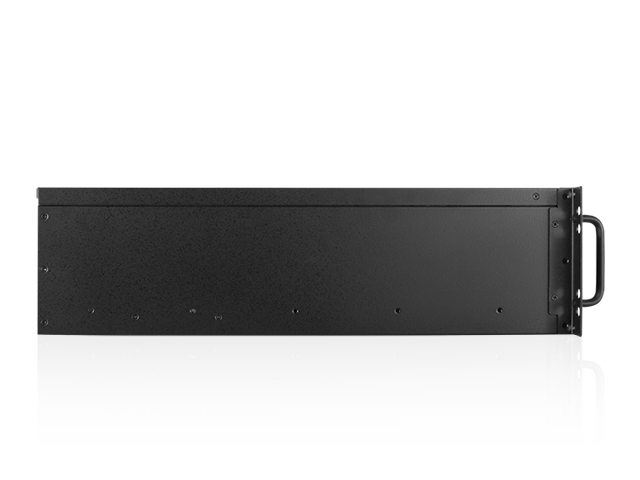

	D-3100HN 3U Compact 10x 3.5" Bay Trayless Hot-Swap microATX Chassis 10x Hotswappable and Trayless 3.5" Drive Bays Rackmount or Desktop Convertible Compatible with PS2 and mini Redundant Power Supply Sleek Aluminum Front Panel 2x Front USB 3.0 ports Power & HDD Indicators on Front Panel
Product Introduction The D-230HN-T, D-340HN-T, D-350HN-T, D-260HN, D-380HN, and D-3100HN series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 4TB per each bay, the tray-less drive cage maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors. YouTube video: iSG D-3100HN 3U Compact 10x 3.5" Bay Trayless Hot-Swap microATX Chassis - 4k video https://youtu.be/Yc8P3YoH0Q4

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-3100HN
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drive (internal): 1 Hotswap 3.5": 10
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD
Switches	Power
Expansion Slots	4
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	SGCC 0.8mm
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Motherboard Size	12 x 9.6 (ATX, microATX)
Cooling Fan	4x80mm
Optional Fan:	80mm x1
Ordering Information (Part Number)	Black HDD Handle:D-3100HN Blue HDD Handle:D-3100HN-BLUE Red HDD Handle:D-3100HN-RED Silver HDD Handle:D-3100HN-SILVER
Dimensions (WxHxD)	18.98" x 5.22" x 19.06" 482.1 mm x 132.6 mm x 484.1 mm
Notes	- the first three ATX motherboard slots cannot be used.

Download

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #

Motherboard Size
