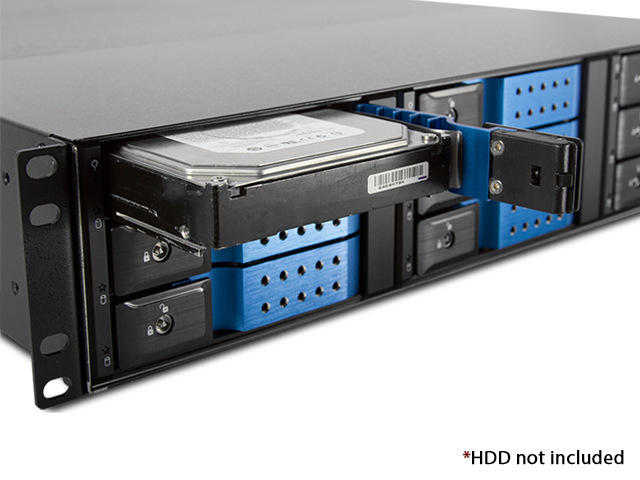

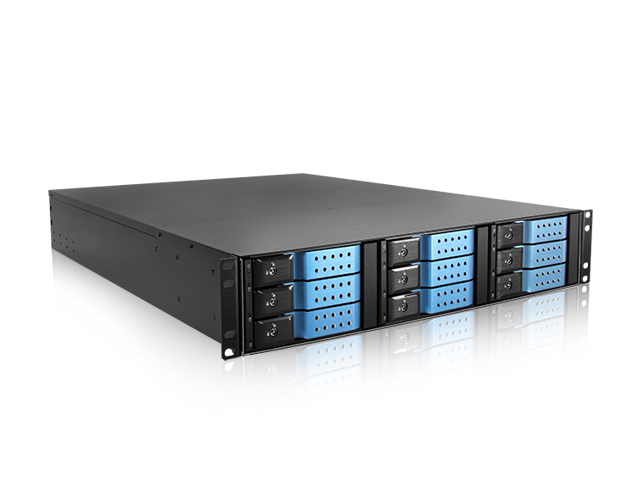

	D-265-3D23-MATX Build-to-Order - 2U 9 x 3.5" Bay Trayless Hot-Swap MicroATX Chassis 9 hot-swappable drive bays in a rackmount 2U Chassis Simultaneously support 6Gb SAS or SATA disk Utilizes industry-standard Audio Video services to monitor enclosure and disk environmental conditions Compatible with Micro ATX Motherboard Power & HDD indicators 2x 80mm, and 3x 70mm cooling fans
Product Introduction The D-135, D-265 and D-265H-D395 series are designed with elegance and functionality.It comes with maximum 5.25; mounting drive bay and ideal for high capacity and scalability storage in most popular Audio Video Surveillance environments. With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-265-3D23-MATX
RoHS Compliance Version	Yes
Standard Drive Bays	2.5" Drive (internal): 1 Hotswap 3.5": 9
Indicators	Power, HDD
Switches	Power on/off
Supported PSU Type	ATX PS2
Expansion Slots	4 (Low profile)
Security	Key Lock
Material of Front Bezel	Aluminum

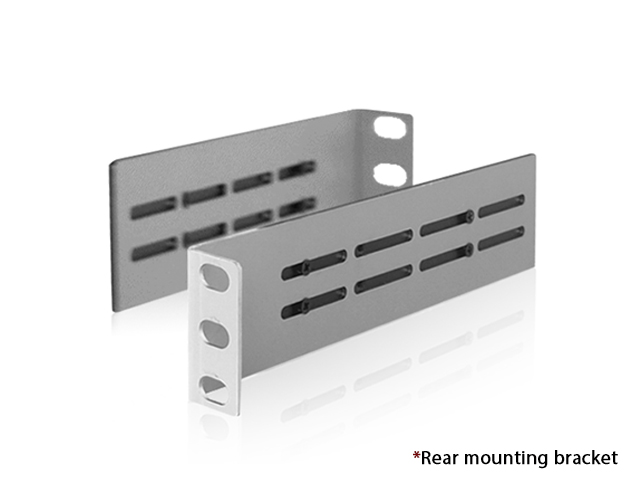

Material of Handle	Steel bracket (unable to mount rail.)
Material of Main Chassis	Steel
Color of Front Bezel	Blue
Color of Main Chassis	Blue
Motherboard Size	9.6 x 9.6 (MATX)
Cooling Fan	3x70mm, 2x80mm
Ordering Information (Part Number)	Black, Red, Blue, Silver
Dimensions (WxHxD)	18.98" x 3.48" x 20.04" 482.1 mm x 88.4 mm x 509.0 mm

Download

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.
