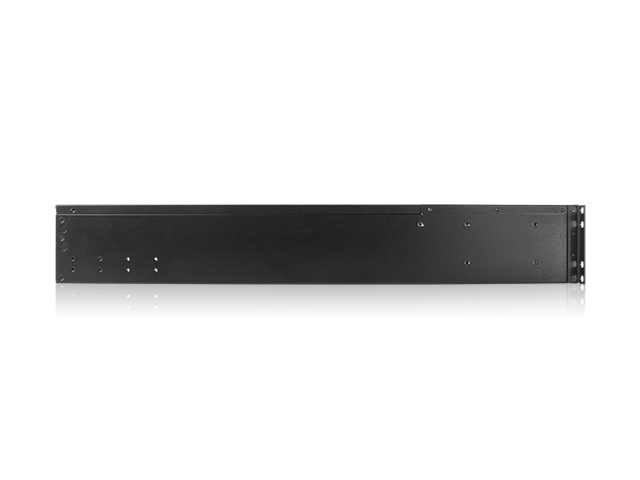

D-265-3D23

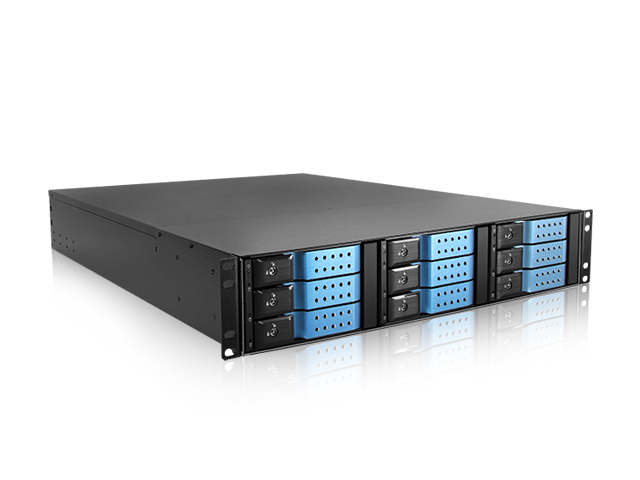

2U 9 x 3.5" Bay Trayless Hot-Swap ATX Chassis

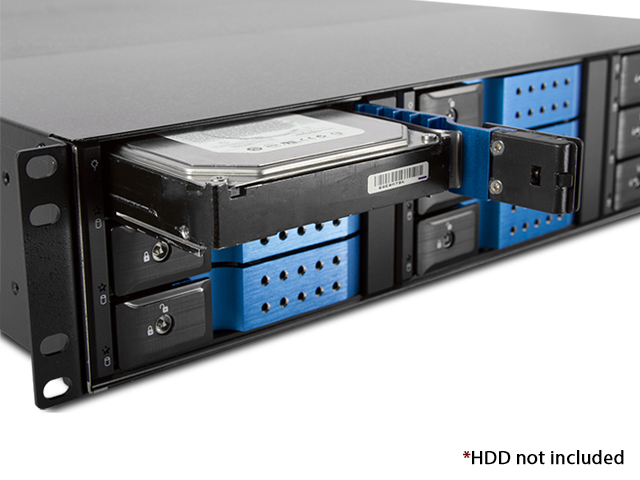

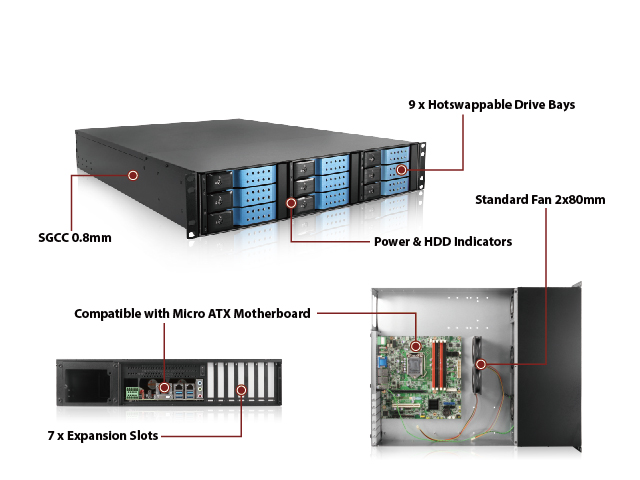

  • 9 trayless and hotswappable 3.5" bays for HDD quick swap

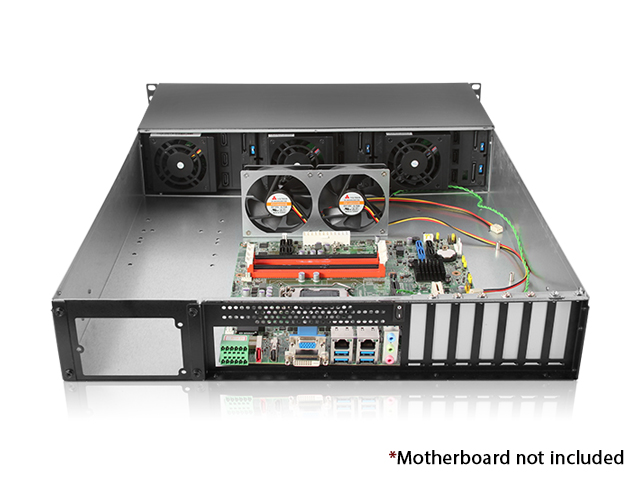

  • 2x 80mm, and 3x 70mm cooling fans
  • Supports standard ATX power supplies
  • Compatible with redundant power supplies

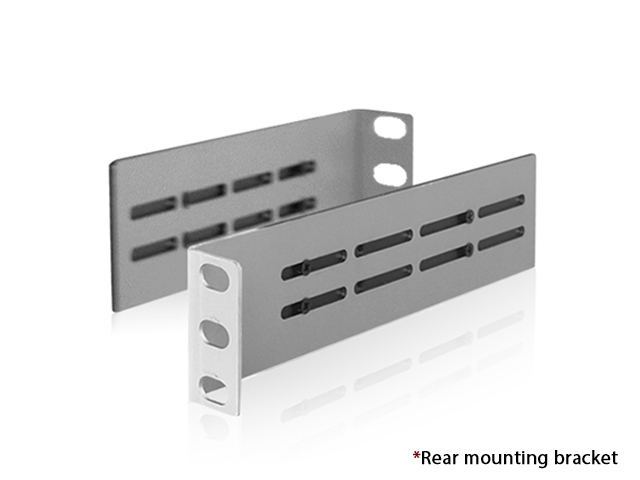

  • Rear-mount brackets included
  • Supports 6.0 Gb/s hard drives
  • Sleek aluminum front with color options for HDD handles



Product Introduction
The D-265-3D23, D-265-3D23-MATX and D-265H-3D23-JB series are designed with elegance and functionality. It comes with 9 hot-swappable bays and ideal for high capacity and scalability storage in most popular Audio Video Surveillance environments. With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 3 TB per each bay, the tray-less drive cage maximizes data storage and backup functionality at the same time.


Model NumberD-265-3D23
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 3.5": 9
IndicatorsPower on/off, HDD
SwitchesPower on/off
Supported PSU Type2U Single/ 2U Redundant PSU

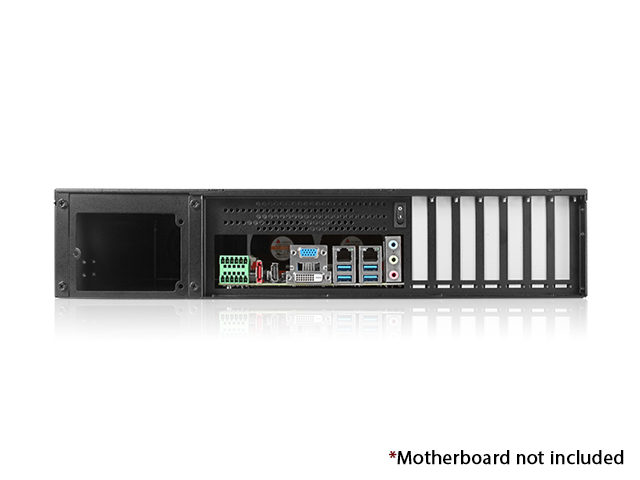

Expansion Slots7 (Low profile)
Securitykeylock
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisSGCC 0.8mm
Color of Front BezelBlue

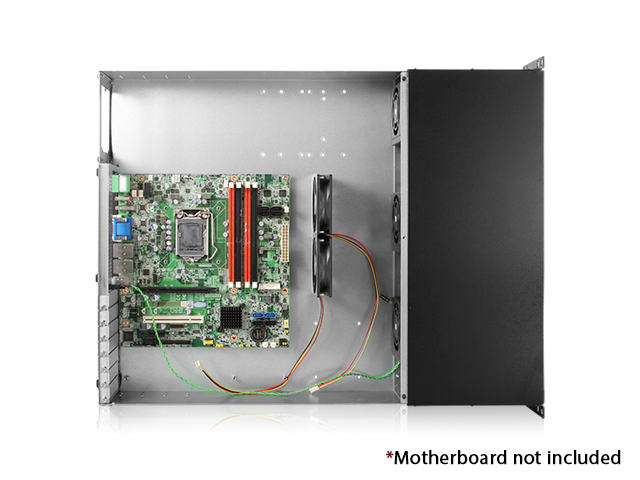

Motherboard SizeATX
Cooling Fan3x70mm, 2x80mm
Ordering Information
(Part Number)
Black, Red, Blue, Silver
Dimensions (WxHxD)19.00" x 3.47" x 23.66"
482.6 mm x 88.1 mm x 601.0 mm
