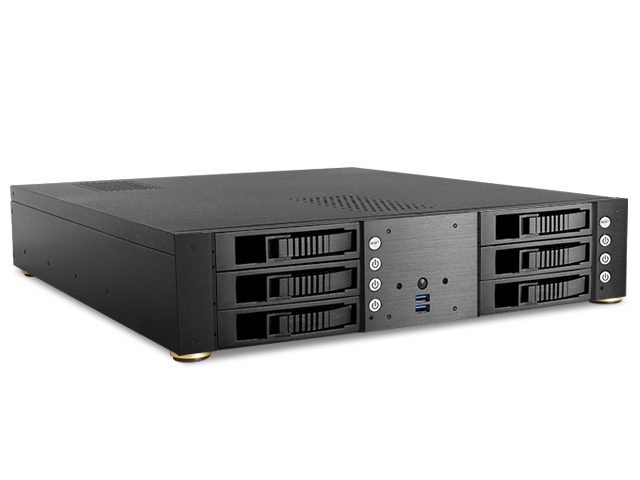

	D-260HB-DT 2U Compact 6x 3.5" Bay Hot-Swap microATX Desktop Chassis 6x Hotswappable 3.5" Drive Bays. Compatible with 2.5" SSD/HDD Rackmount or Desktop Convertible Compatible with PS2 Power Supply Sleek Aluminum Front Panel 2x Front USB 3.0 ports Power & HDD Indicators on Front Panel
Product Introduction The D-230HB-DT, D-260HB-DT, D-340HB-DT, D-350HB-DT, D-380HB-DT, and D-3100HB-DT series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 4 TB per each bay, the hot-swap drive cage maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-260HB-DT
RoHS Compliance Version	Yes
Standard Drive Bays	2.5" Drive (internal): 2 Hotswap 3.5": 6
Hotswap HDD Type:	3.5" SAS I/II & SATA I/II/III
Indicators	Power, HDD
Switches	Power
Supported PSU Type	ATX PS2
Expansion Slots	4 (Low profile)
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	SGCC 0.8mm
Color of Main Chassis	Black
Front Connector	2x USB 3.0
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan	2x70mm, 1x80mm
Ordering Information (Part Number)	Black HDD Handle:D-260HB-DT Blue HDD Handle:D-260HB-DT-BLUE Red HDD Handle:D-260HB-DT-RED Silver HDD Handle:D-260HB-DT-SILVER
Dimensions (WxHxD)	18.98" x 3.48" x 19.30" 482.1 mm x 88.4 mm x 490.2 mm
Notes	one 80mm Fan for chassis, two 70mm Fan for HDD Hot-Swap backplane.
