D-230HB-DT

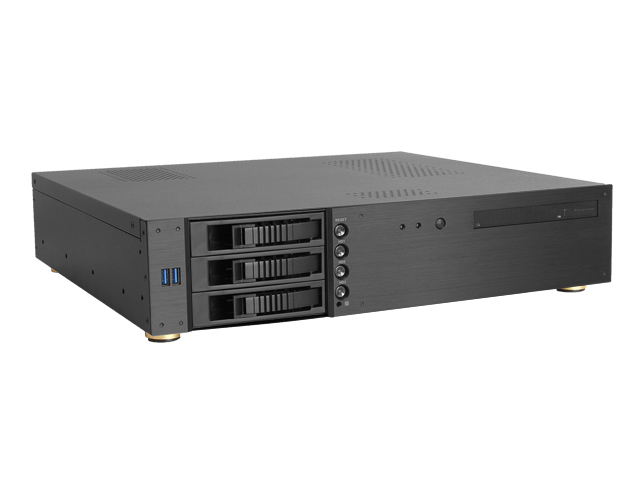

2U Compact 3x 3.5" Bay Hot-Swap microATX Desktop Chassis
  • 3x Hotswappable 3.5" Drive Bay. Compatible with 2.5" SSD/HDD
  • Rackmount or Desktop Convertible
  • Compatible with PS2 Power Supply
  • Slim Optical Drive Bay Available
  • 2x Front USB 3.0 ports
  • Sleek Aluminum Front Panel



Product Introduction
The D-230HB-DT, D-260HB-DT, D-340HB-DT, D-350HB-DT, D-380HB-DT, and D-3100HB-DT series are designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of server racks for home, these models are ideal for both rackmount and desktop orientation. With storage capacity up to 4TB per each bay, the drive cage has tray supporting 3.5" HDD & 2.5" HDD and maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.


Model NumberD-230HB-DT
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
3.5" Drive (internal): 1
Hotswap 3.5": 3
Slim 5.25" Optical: 1
Hotswap HDD Type:3.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Supported PSU TypeATX PS2

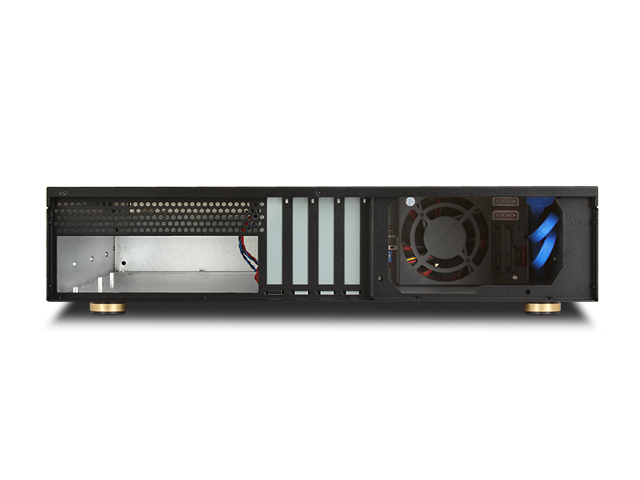

Expansion Slots4 (Low profile)
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisSGCC 0.8mm
Color of Main ChassisBlack
Front Connector2x USB 3.0
Motherboard Size9.6 x 9.6 (microATX, mini-ITX)
Cooling Fan2x80mm
Ordering Information
(Part Number)
Black HDD Handle:D-230HB-DT

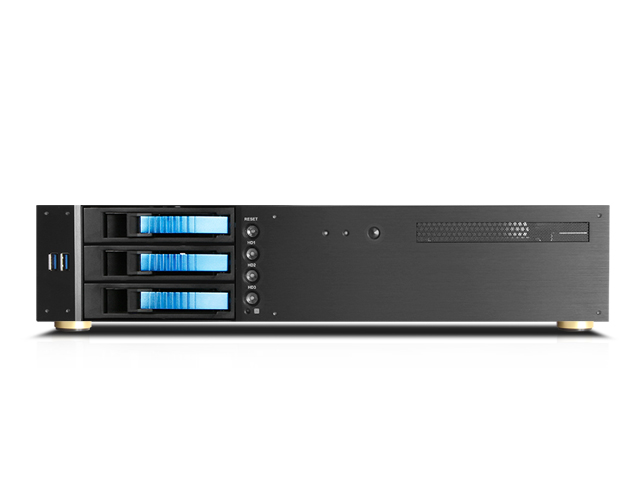

Blue HDD Handle:D-230HB-DT-BLUE
Red HDD Handle:D-230HB-DT-RED

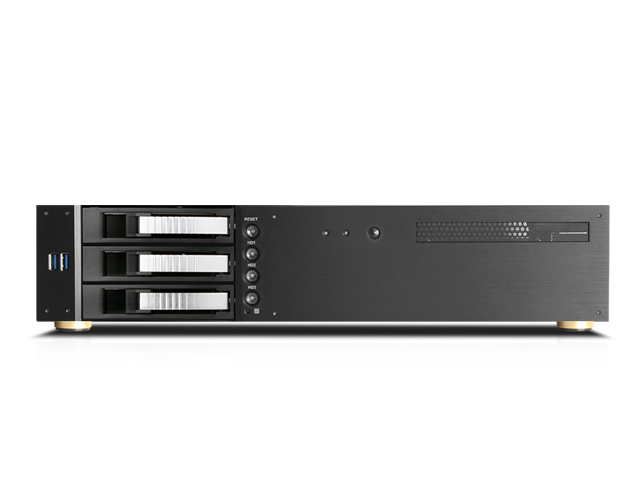

Silver HDD Handle:D-230HB-DT-SILVER

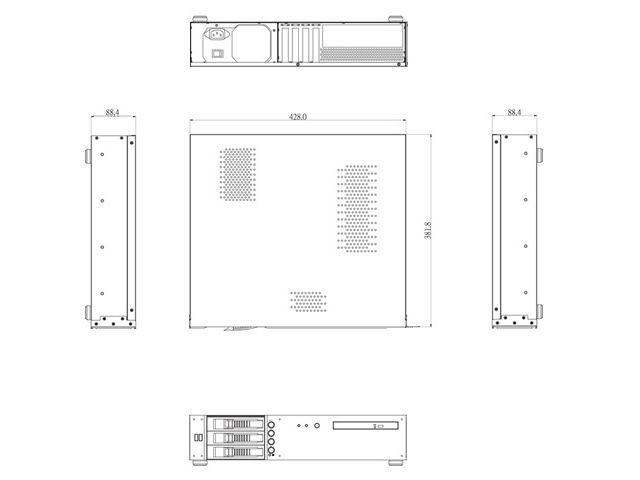

Dimensions (WxHxD)18.98" x 3.48" x 14.95"
482.1 mm x 88.4 mm x 379.7 mm
Notes- fits standard ATX power supply with length no more than 140mm. - one 80mm Fan for chassis, one 80mm Fan for HDD Hot-Swap backplane.
