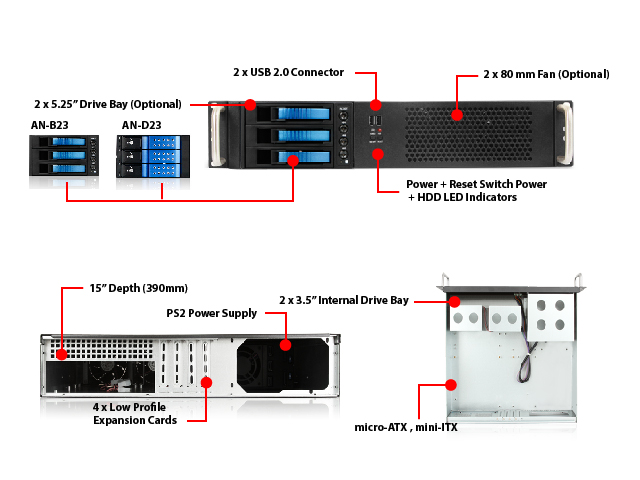

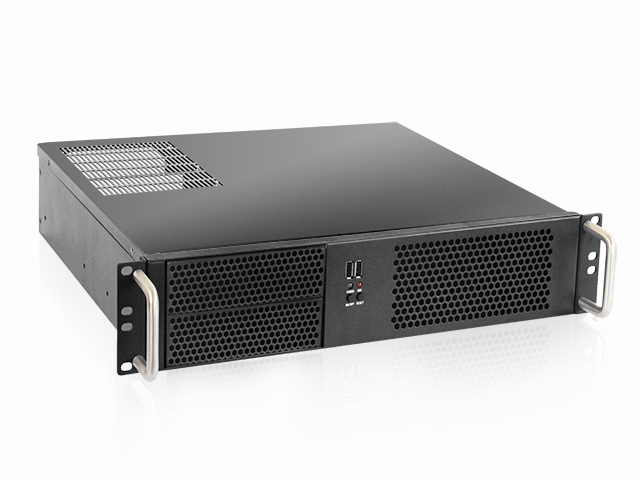

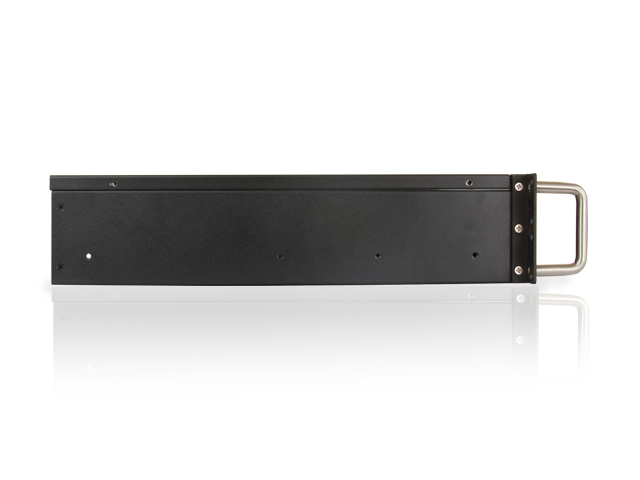

	D-214-MATX 2U Compact Rackmount microATX Chassis Industrial Chassis with 15" in Depth Supports Front Access USB2.0 x2 Power and HDD LED Power and Reset Switch Support ATX PS2 Power Supply Support 4 x Low Profile Add-on Cards
Product Introduction D-214-MATX is a reliable and stable 2U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 15" in depth and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-214-MATX supports a standard ATX PS2 power supply to meet regular server system applications.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-214-MATX
RoHS Compliance Version	Yes

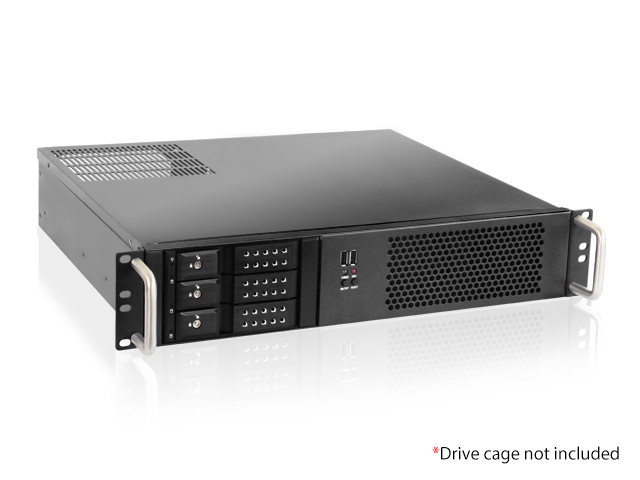

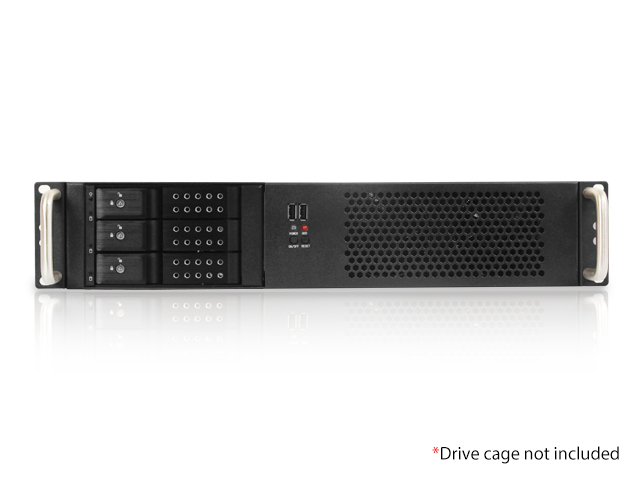

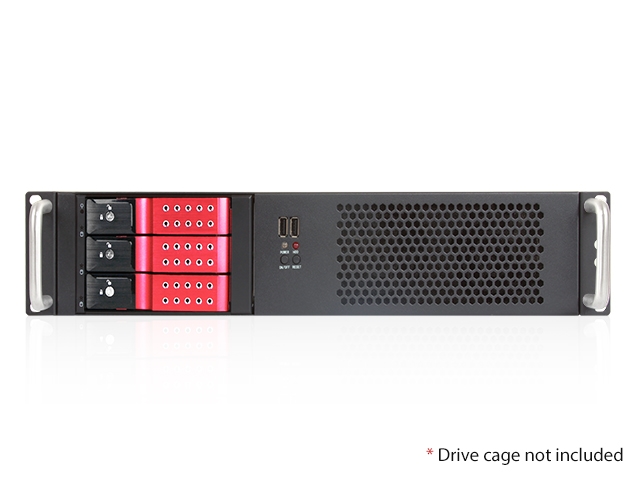

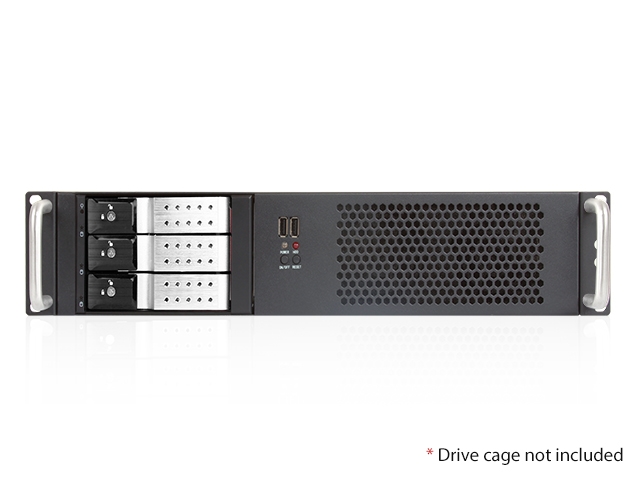

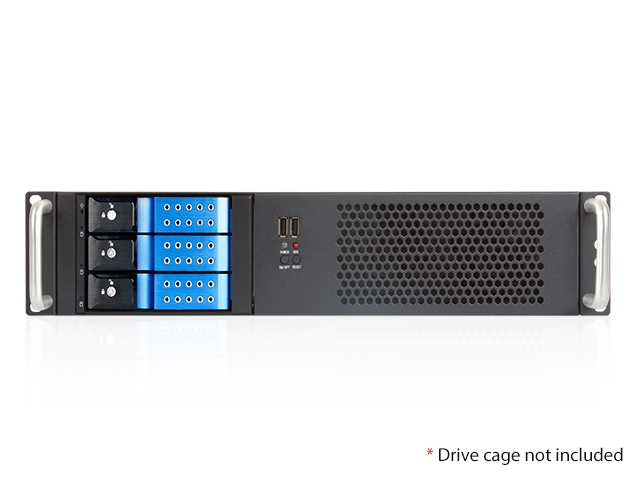

Standard Drive Bays	3.5" Drive (internal): 2 5.25" Drives: 1+1
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2

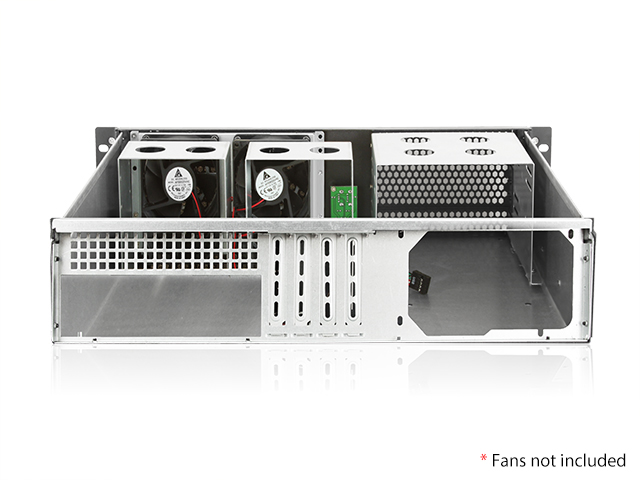

Expansion Slots	4 (low profile)
Material of Front Bezel	SGCC 1.2mm
Material of Handle	Steel
Material of Main Chassis	SGCC 1.2mm
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0

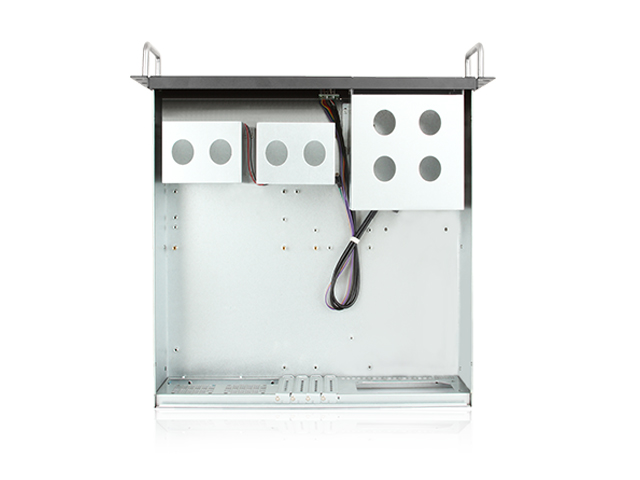

Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)

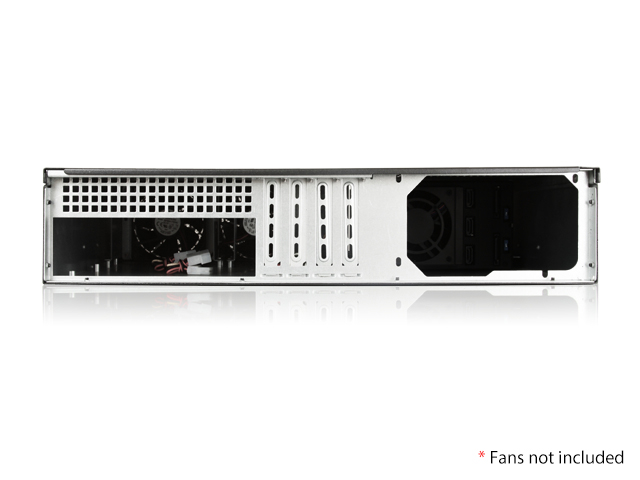

Optional Fan:	80mmx2
Dimensions (WxHxD)	19.00" x 3.50" x 16.94" 482.6 mm x 88.9 mm x 430.3 mm
Notes	D-214-MATX-U3: USB 3.0 version, please contact sales rep. for more infomation.

Download

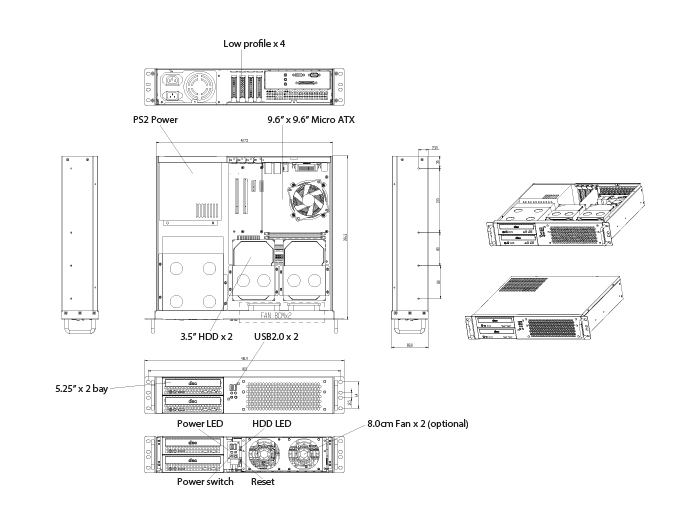

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-FDD35	3.5" to 5.25" Floppy Drive Mounting Bracket
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #

Motherboard Size

Company Name
