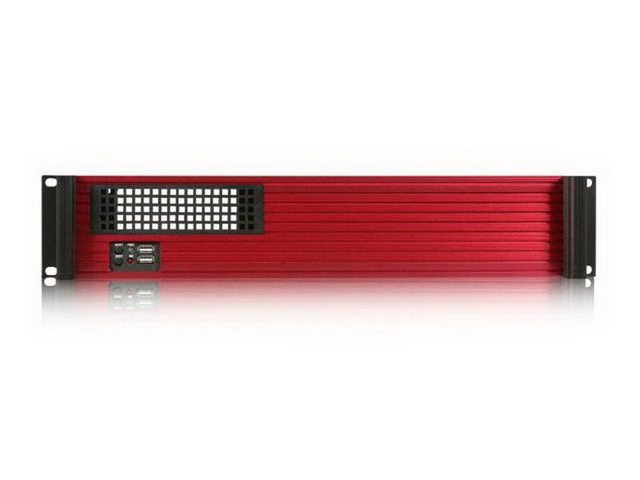

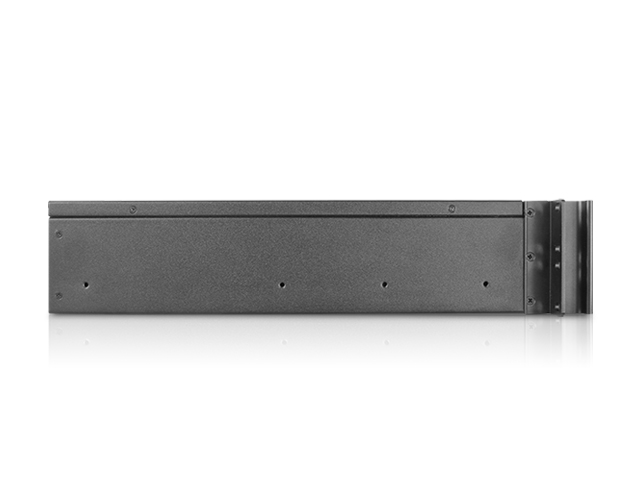

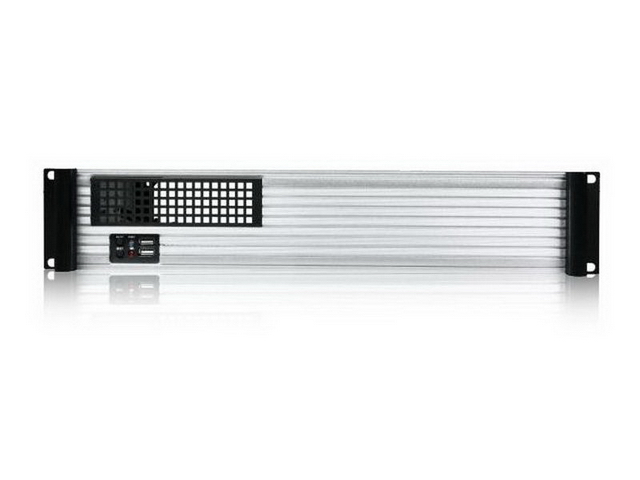

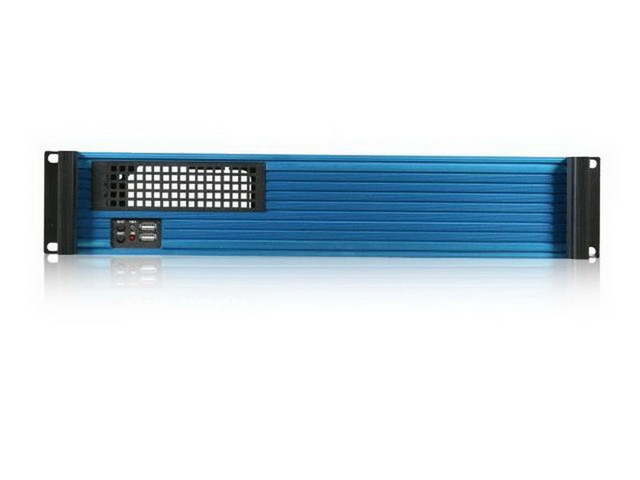

D-213-MATX

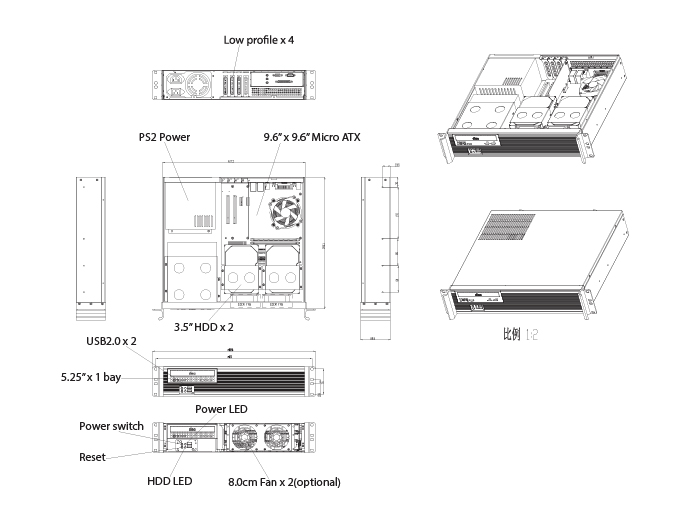

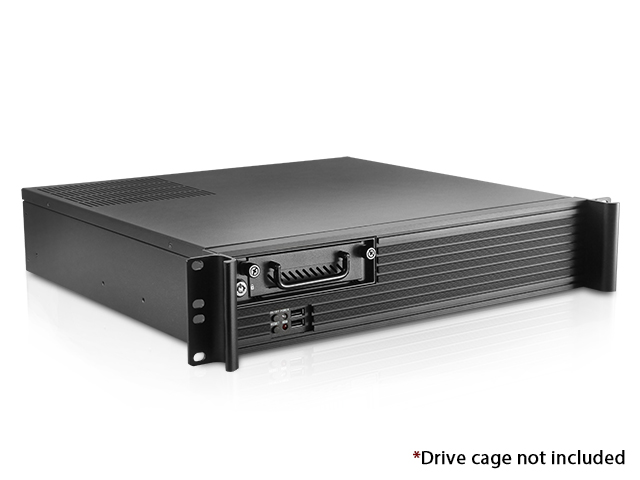

2U Compact Rackmount microATX Chassis

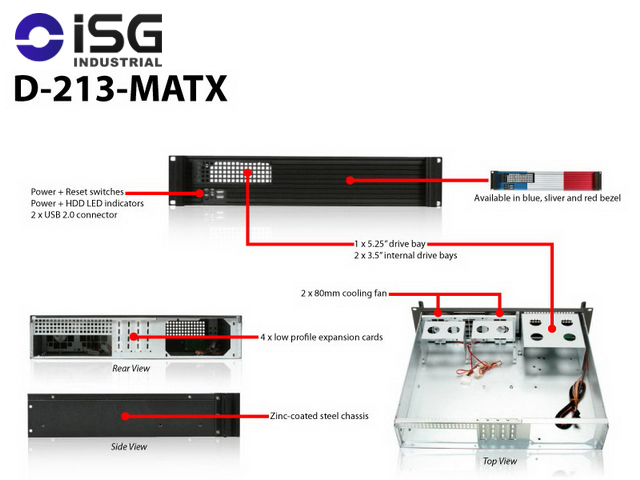

  • Industrial Chassis with 15" in Depth
  • Supports Front Access USB2.0 x2
  • Power and HDD LED
  • Power and Reset Switch
  • Support ATX PS2 Power Supply

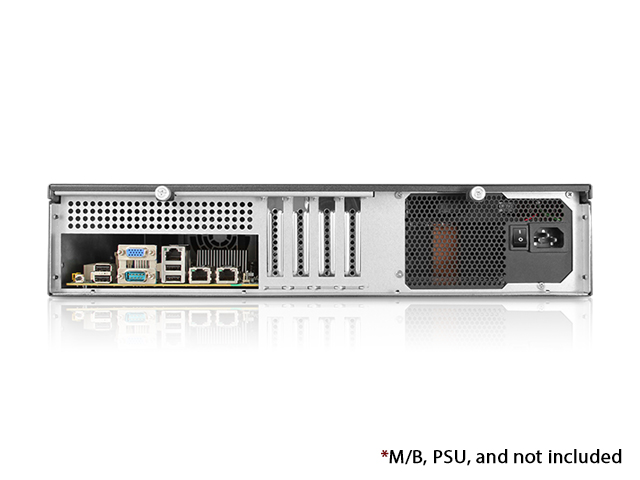

  • Support 4 x Low Profile Add-on Cards

Product Introduction

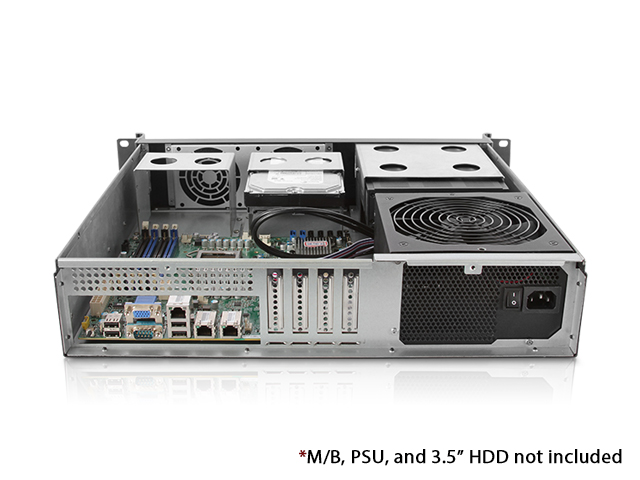

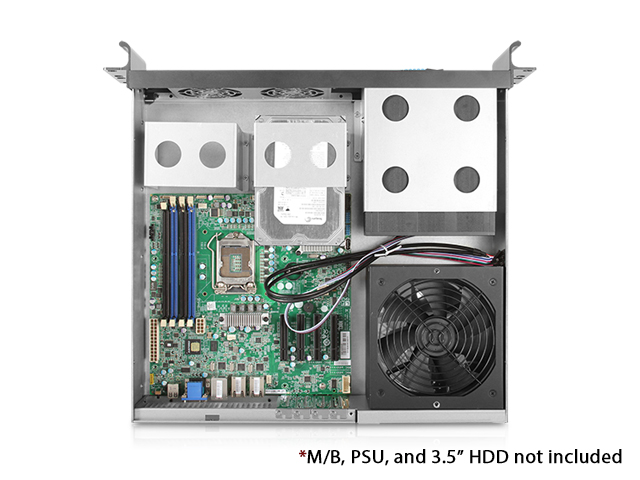

D-213-MATX is a reliable and stable 2U-high 15" depth industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 low profile add-on cards. This chassis is only 15" in depth and has optional two intake 80mm cooling fans at front for air ventilation. In addition, D-213-MATX supports a standard ATX PS2 power supply to meet regular server system applications.


Model NumberD-213-MATX
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drive (internal): 2
5.25" Drives: 1
IndicatorsPower, HDD
SwitchesPower, Reset
Supported PSU TypePS2
Expansion Slots4 (Low profile)
Material of Front BezelAluminum
Material of HandleAluminum
Material of Main ChassisZinc-Coated Steel
Color of Front BezelBlack
Color of Main ChassisBlack
Front Connector2x USB 2.0
Motherboard Size9.6 x 9.6 (microATX, mini-ITX)
Optional Fan:80mmx2
Dimensions (WxHxD)19.00" x 3.50" x 16.85"
482.6 mm x 88.9 mm x 428.0 mm
NotesD-213-MATX-U3: USB 3.0 version, please contact sales rep. for more infomation.


Download
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description
DIY-RHF03Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
RP-FDD353.5" to 5.25" Floppy Drive Mounting Bracket
RP-HDD2535FEnd of Life - 5.25" Drive Bay Cooling System for Hard Drive
RP-HDD25BC2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD25P2.5" HDD SSD Mounting Bracket for 3.5" Bay
RP-HDD3.53.5" to 5.25" Hard Drive Mounting Bracket
RP-2HDD25355.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
RP-4HDD255F4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
TC-RAIL-2020" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2424" Sliding Rail Kit for Most Rackmount Chassis
TC-RAIL-2626" Sliding Rail Kit for Most Rackmount Chassis

Compatible Motherboards

Model #Motherboard SizeCompany Name
P8B-MXMicro-ATXASUS
AD2550R/U3S3Mini ITXASRock
S5510MicroATXTYAN
S5515MicroATXTYAN
GA-6UASV3microATXGIGABYTE
GA-6UASL3microATXGIGABYTE
