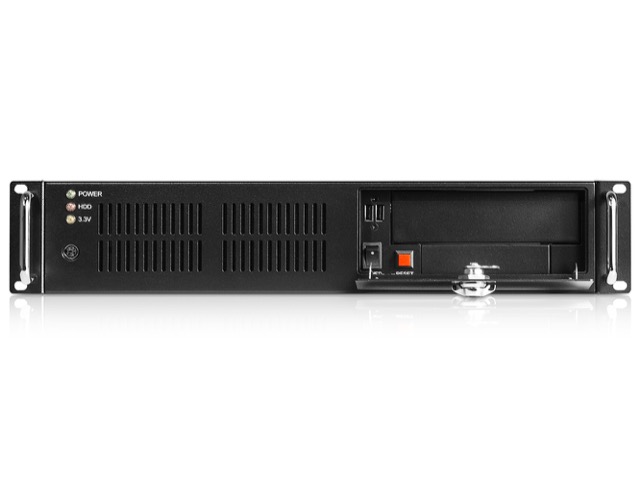

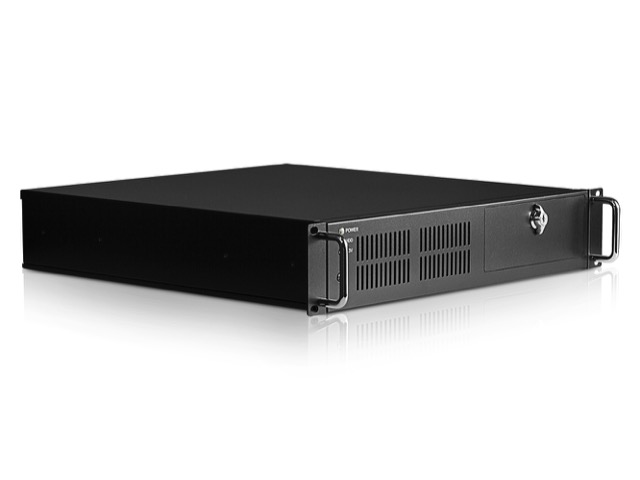

	D-202A-6 2U Compact Rackmount Chassis Front Access USB2.0 X2 80mm x2 Cooling Fan Power and HDD LED Power Switch and Alarm Reset Button Key Lock Front Bezel to Prevent Unauthorized Access Supports standard ATX PSU Supports Six Full Height Add-on Cards

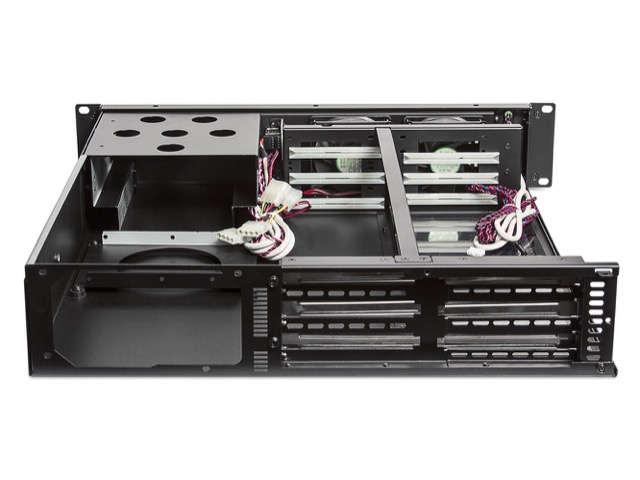

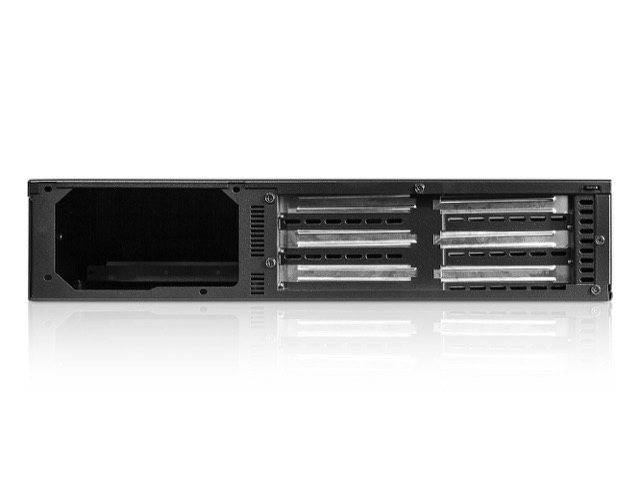

Product Introduction The D-202A-6 2U Compact Rackmount Chassis is a secure chassis solution for your server needs. This compact 2U chassis supports six full height add on cards as well as standard ATX PSU. The secure locking 5.25” bay prevents unauthorized access to all of your precious information.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-202A-6
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drives: 1 3.5" Drive (internal): 1 5.25" Ext. Bay: 1
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2
Expansion Slots	6
Security	Yes
Material of Front Bezel	SGCC
Material of Handle	SGCC
Material of Main Chassis	SGCC
Color of Front Bezel	Black or Beige
Color of Main Chassis	Black or Beige
Front Connector	2 x USB 2.0
Air Filter	Yes
Motherboard Size	Support 6 Slot Backplane
Cooling Fan	2x80mm
Dimensions (WxHxD)	18.90" x 3.47" x 17.72" 480.1 mm x 88.1 mm x 450.1 mm

Download

Data Sheet (PDF)

FAQ

There are no FAQ entries for this model.
