D-135-2222

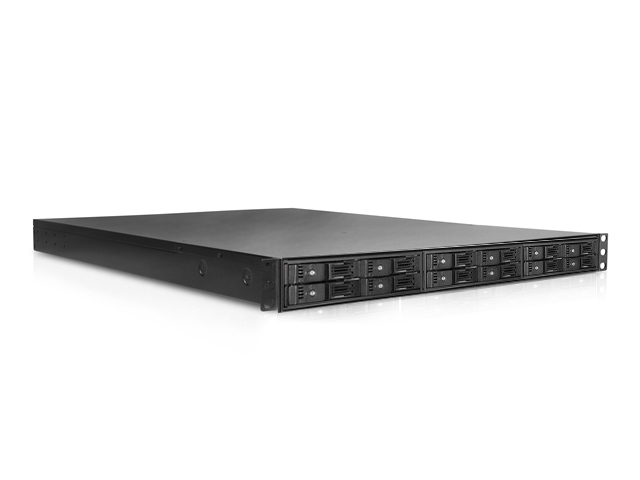

1U 12x 2.5" Bays Trayless Hot-Swap ATX Chassis
  • Support ATX Motherboard
  • 12x2.5" SATA Hot-Swap Trayless Drive Cage plus Slim ODD
  • Advance Thermal Cooling Design Optimizes Airflow
  • Included 3 Cooling Fans
  • Power + HDD LED Indicator
  • Power on/ off Switch
  • Fully RoHS Compliance



Product Introduction
1U Tool-less hotswap rackmount series not only has the stylish appearance, but the functionality and flexibility make A/V series a new breed of storage solution. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide 1U power supply to ensure total up time of mission critical storage applications. ;


Model NumberD-135-2222
RoHS Compliance VersionYes
Standard Drive Bays 2.5" Drive (internal): 1
Hotswap 2.5": 12
Indicatorspower / HDD LED
SwitchesPower on/off(rear panel)
Supported PSU Type1U single or 1U Redundant psu
Expansion Slots1
Securitykeylock
Material of Front BezelPlastic
Material of HandleAluminum
Material of Main ChassisSteel
Color of Front BezelBlack
Color of Main ChassisBlack
Motherboard SizeATX (12" x 9.6")
Cooling Fan3x40mm
Dimensions (WxHxD)19.00" x 1.73" x 23.62"
482.6 mm x 43.9 mm x 599.9 mm
