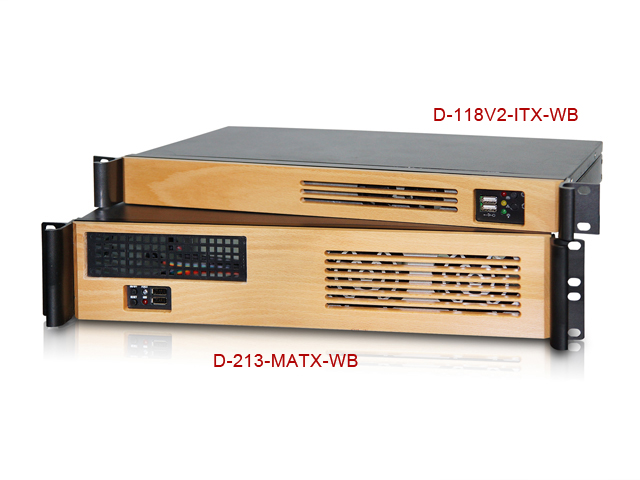

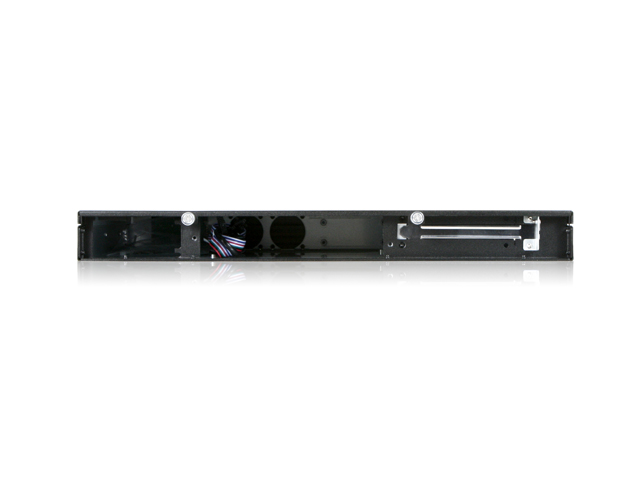

	D-118V2-ITX-WB 1U Compact Rackmount mini-ITX Chassis with wood front bezel Industrial Chassis with 11" in Depth Supports Front Access USB2.0 x2 Power and HDD LEDs Power and Reset Switch Supports mini-ITX Motherboard Supports 1U Flex Power Supply Wood Front Bezel

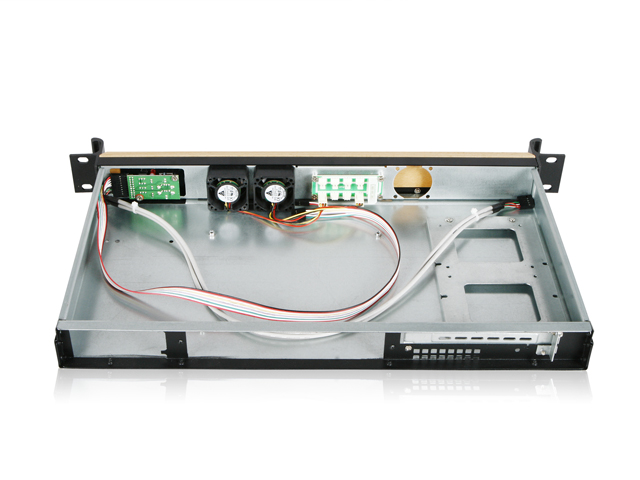

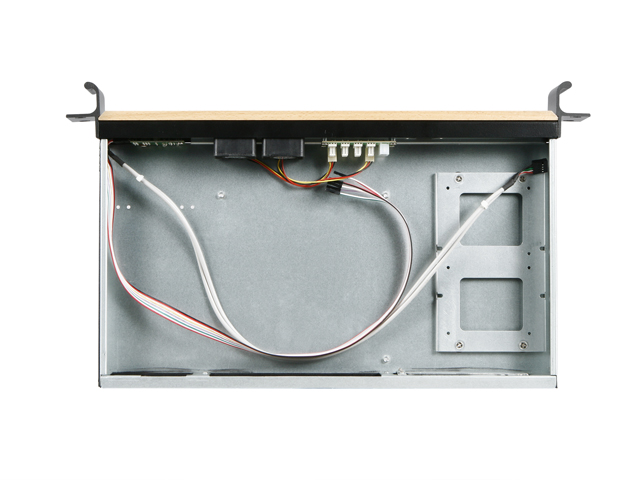

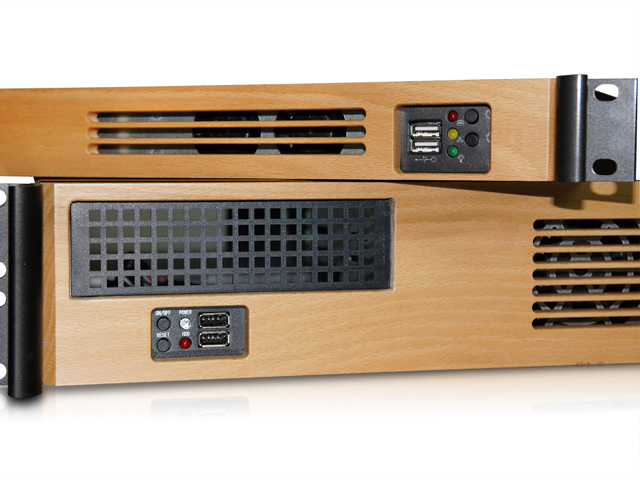

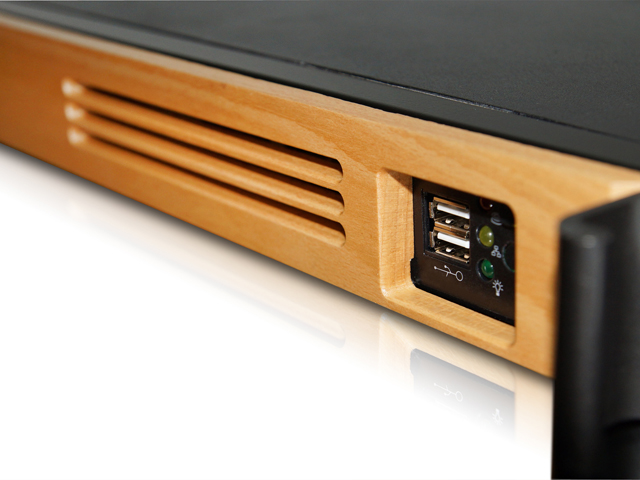

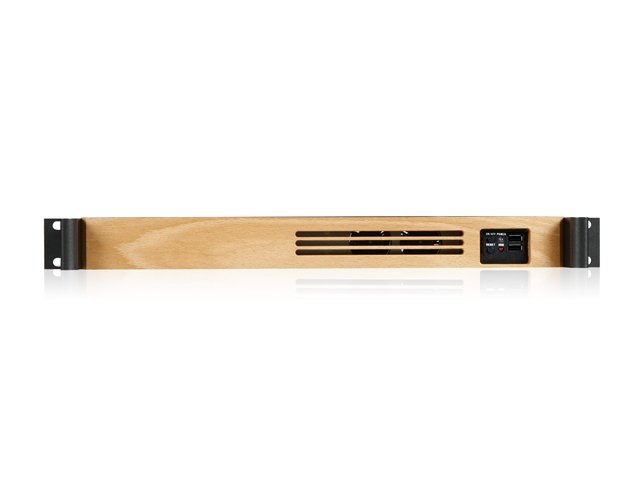

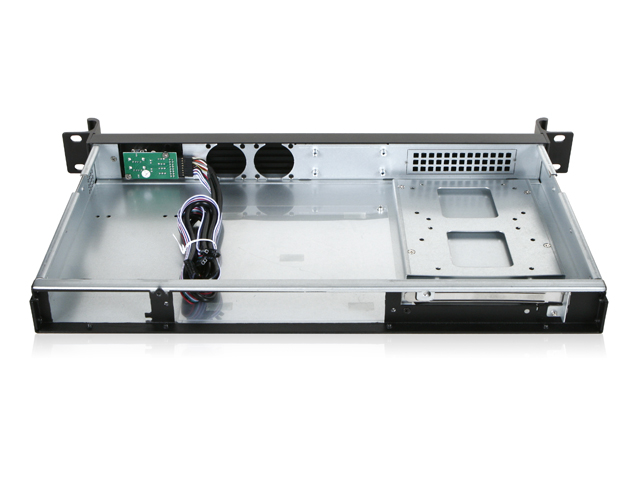

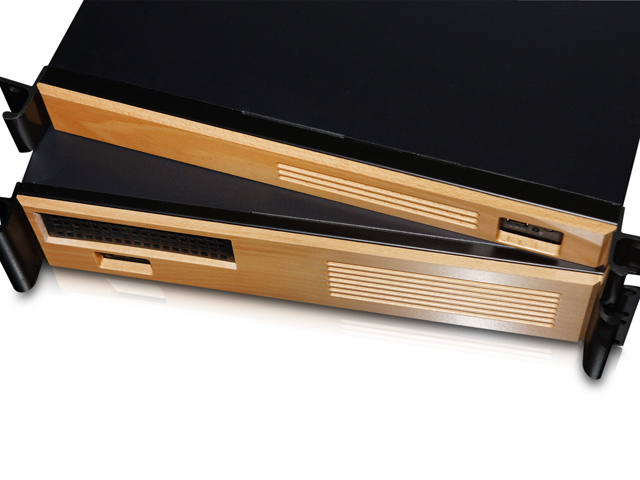

Product Introduction D-118V2-ITX-WB is a stylish and reliable 1U-high 11" depth industrial computer chassis. This chassis is equipped with a wood front bezel and supports either one 3.5?? or two 2.5?? hard drive with a mini-ITX motherboard. D-118-ITX-WB supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-118V2-ITX-WB
RoHS Compliance Version	Yes
Standard Drive Bays	2.5" Drive (internal): 2
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	1U Flex
Expansion Slots	1
Material of Front Bezel	Wood
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	6.7 x 6.7 (mini-ITX)
Optional Fan:	40mm x2
Dimensions (WxHxD)	19.00" x 1.75" x 11.12" 482.6 mm x 44.4 mm x 282.4 mm
Notes	- 3.5" hdd cannot be installed when an add-on card is in place. - standard I/O shield will NOT fit any 1U chassis.

Download

There are no downloadable media for this product.

FAQ

There are no FAQ entries for this model.
