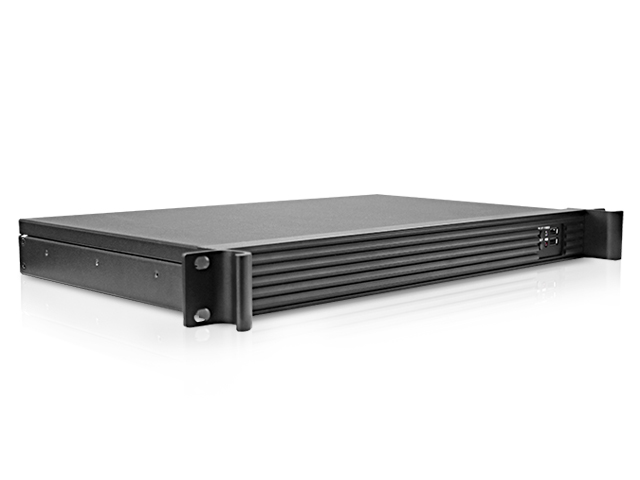

	D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis Industrial Chassis with 11" in Depth Supports Front Access USB2.0 x2 Power and HDD LEDs Power and Reset Switch Supports mini-ITX Motherboard Supports 1U Flex Power Supply

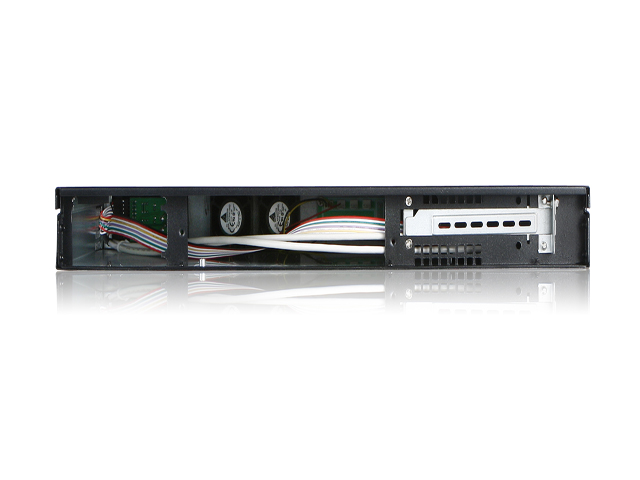

Product Introduction D-118V2-ITX is a reliable and stable 1U-high 11" depth industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drive with a mini-ITX motherboard. D-118-ITX supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.

Specifications	Download	FAQ
Optional Accessories	Compatible Motherboards

Model Number	D-118V2-ITX
RoHS Compliance Version	Yes
Standard Drive Bays	2.5" Drive (internal): 2
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	1U Flex
Expansion Slots	1
Material of Front Bezel	Aluminum
Material of Main Chassis	Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	6.7 x 6.7 (mini-ITX)
Optional Fan:	40mm x2
Dimensions (WxHxD)	19.00" x 1.75" x 11.12" 482.6 mm x 44.4 mm x 282.4 mm
Notes	- 3.5" hdd cannot be installed when an add-on card is in place. - standard I/O shield will NOT fit any 1U chassis.

Download

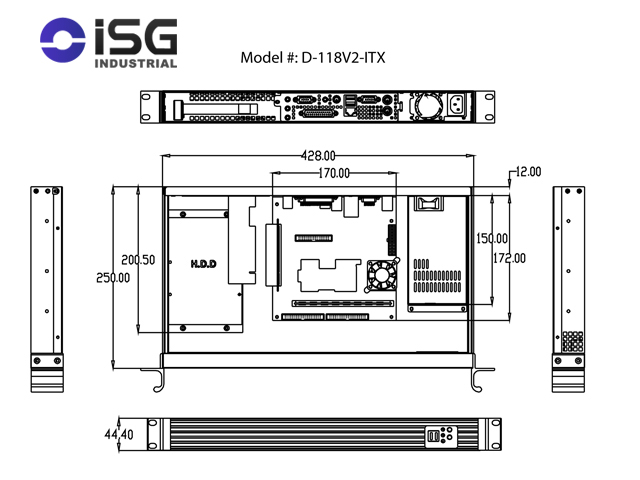

Product Drawing (PDF)

FAQ

There are no FAQ entries for this model.

Optional Accessories

	Model #	Description
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis

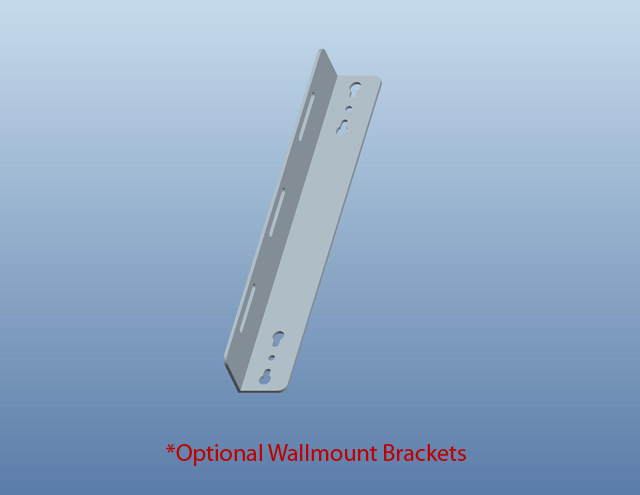

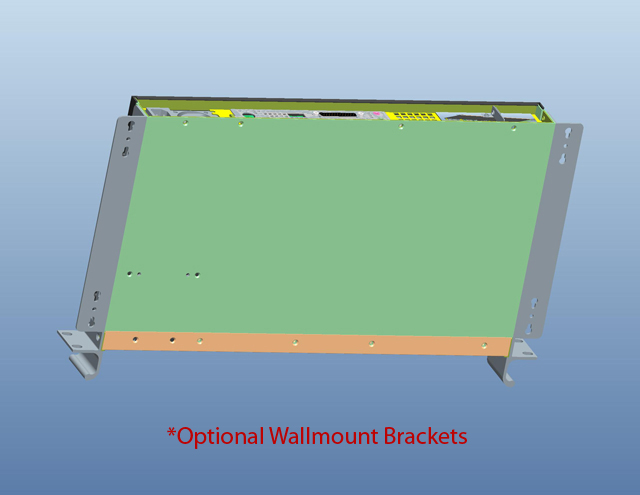

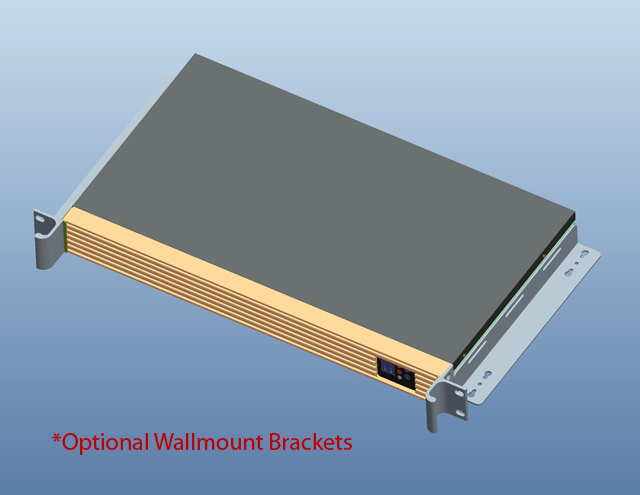

	DD-118-WALL	Build-to-Order - D-118V2-ITX Wallmount Brackets
