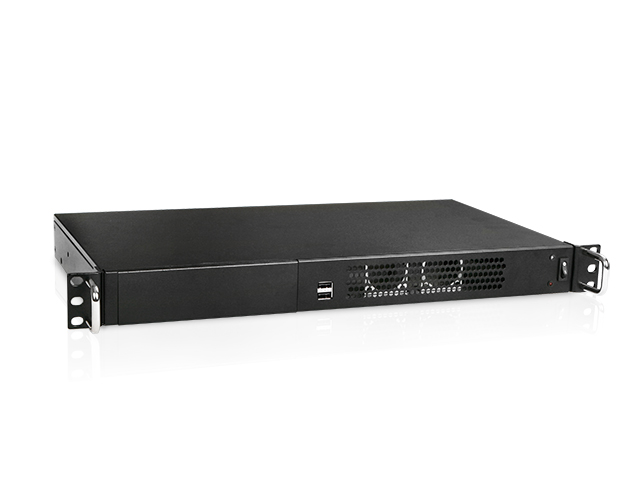

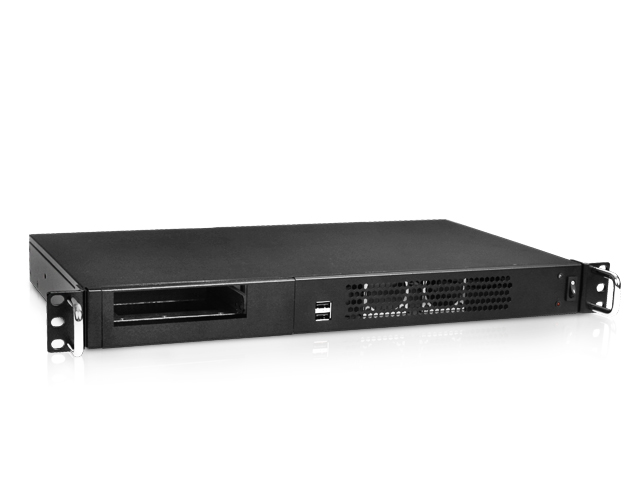

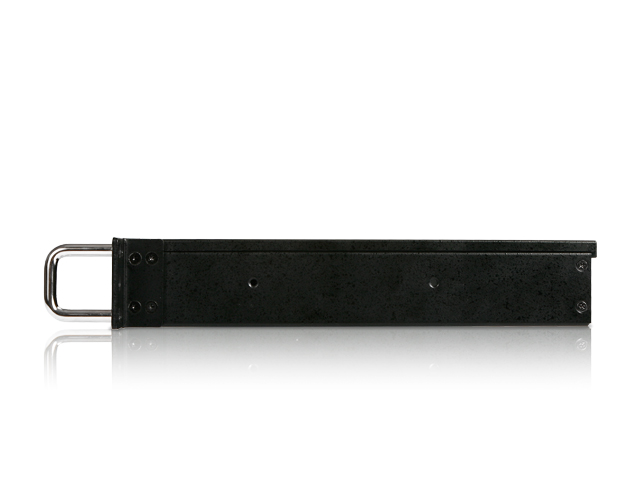

D-1101-ITX 1U 5.25" bay Compact Rackmount mini-ITX Chassis
Industrial chassis less than 11" deep

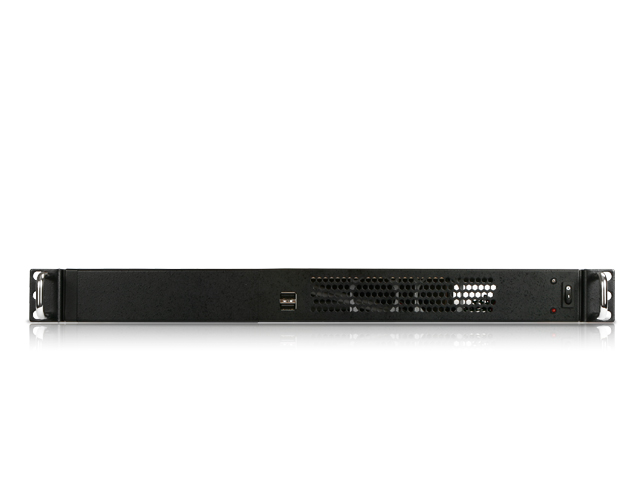

2x front access USB 2.0 ports
Supports mini-ITX motherboards
Supports 1U flex power supplies

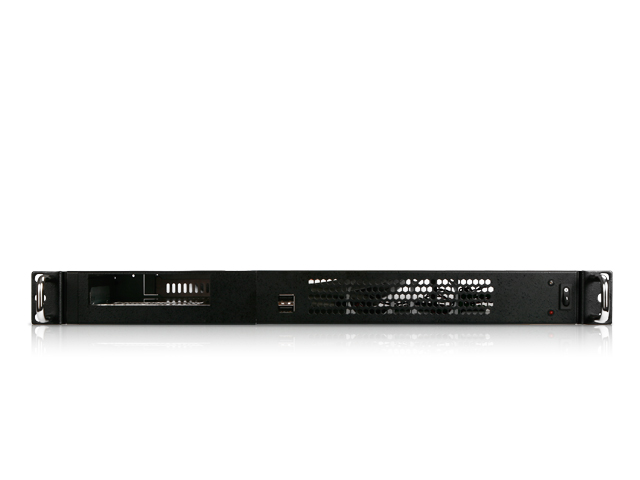

Optional parts to turn 5.25" bay to 3.5" bay
Optional HDD bracket to accommodate up to 6x 2.5" HDDs/SSDs
Product Introduction

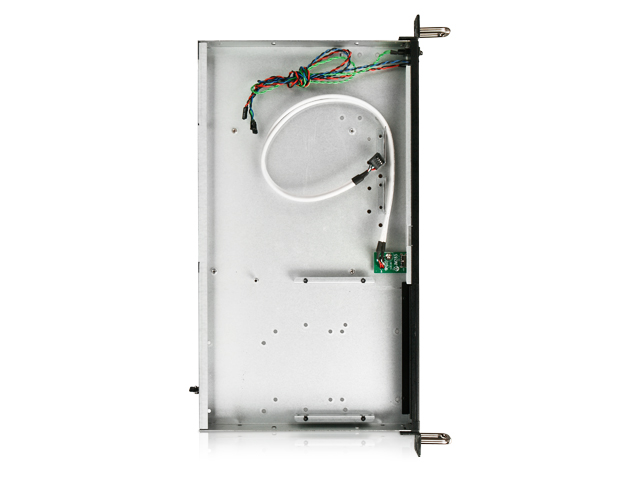

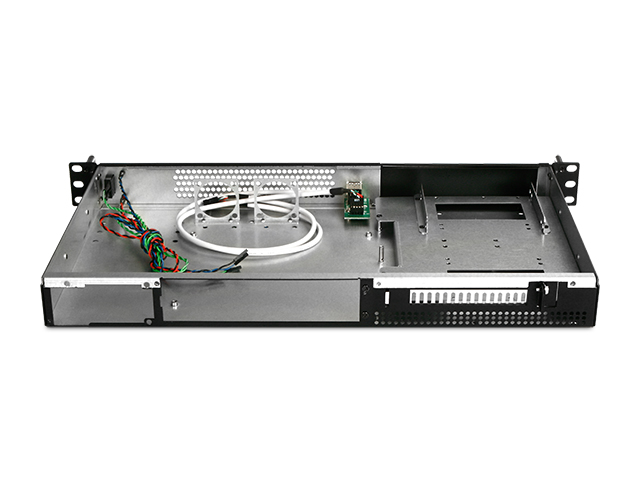

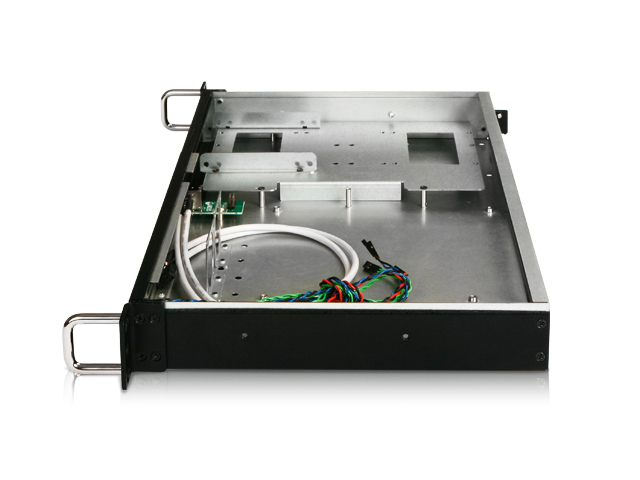

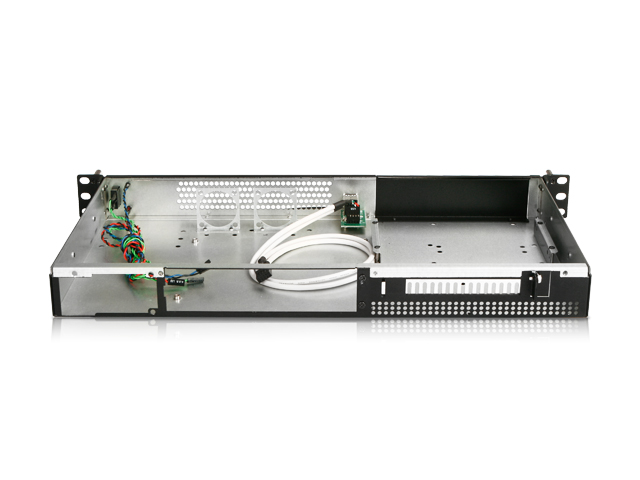

D-1101-ITX is a reliable and stable 1U-high 11" depth industrial computer chassis. This chassis supports 5.25" device, one 3.5" hdd, or three 2.5" hard drives with a mini-ITX motherboard. D-1101-ITX supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.
19.00" x 1.75" x 10.95" 482.6 mm x 44.4 mm x 278.1 mm
Notes
- if 5.25" device is in place and its depth is less than 142mm, one internal 2.5" HDD can be installed. if 5.25" device is longer than 142mm, no internal 2.5" or 3.5" HDD can be installed.
- either one internal 3.5" or three 2.5" HDDs can be installed if no 5.25" device in place.
- standard I/O shield will NOT fit any 1U chassis.
- for PCI riser, use DD-611-C5
- for PCIe x16 riser, use DD-666-C7 (search for DD-666-CX).
