AN-EX30
Build-to-Order - Compact Stylish 3x 5.25" Bay JBOD Tower

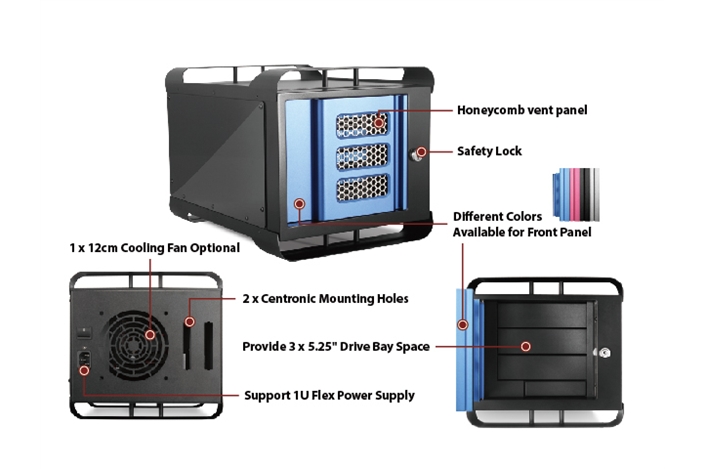

  • Different colors available for front panel
  • Front door filter support

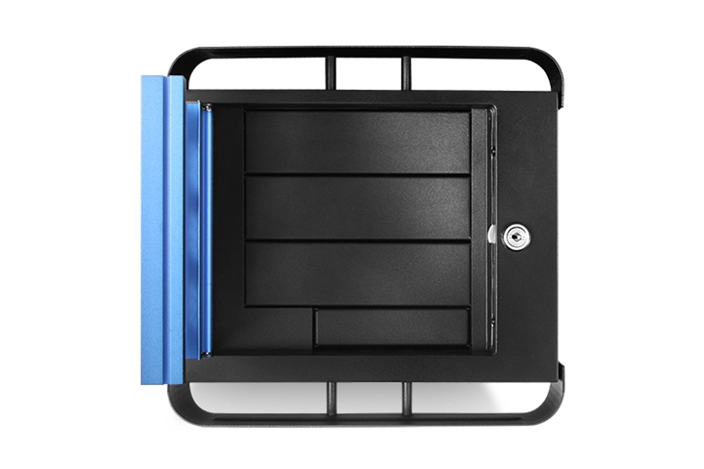

  • Provide 3 x 5.25" drive bay space

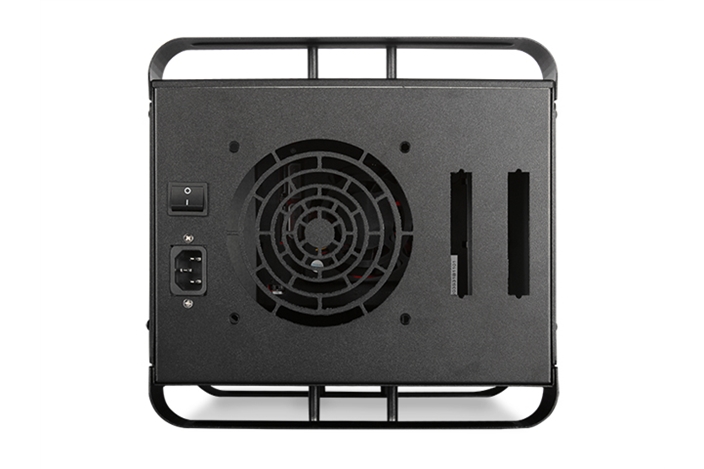

  • Two Centronic mounting holes at back for choosen bridgeboard
  • Support 1U Flex power supply
  • Portable handle design to carry out friendly
  • 1 x 12cm cooling fan optional.

Product Introduction

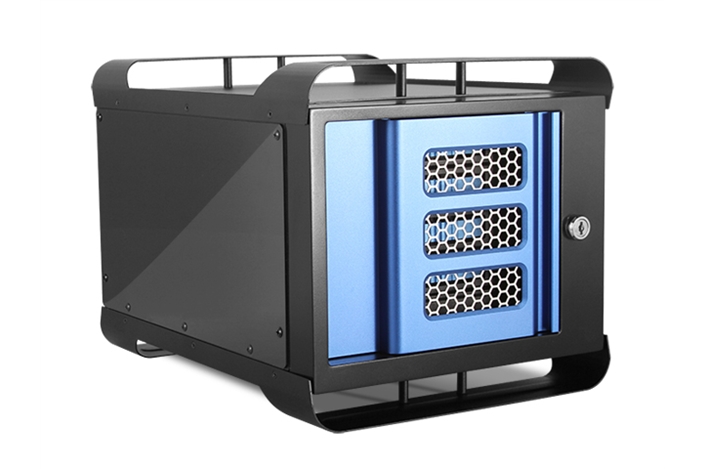

Introducing the AN-EX30 enclosure featuring two centronics mounting slots for various interfaces with different applications, 1U Flex AT PSU mounting ready for compact size AT power supply, and optional 120mm fan in the rear for better cooling. The JBOD tower with solid construction is a cost-effective and flexible solution for your critical data storage.


Model NumberAN-EX30
RoHS Compliance VersionYes
Standard Drive Bays 3.5" Drives: 1
5.25" Drives: 3
SwitchesPower
Supported PSU Type1U Flex
Expansion Slots2 (Centronics)
SecurityKey Lock
Material of Front BezelAluminum
Material of Main ChassisSECC 1.0mm
Color of Main ChassisBlack
Air FilterBezel Filter
Optional Fan:120mm x1
Dimensions (WxHxD)13.39" x 9.88" x 9.37"
340.1 mm x 251.0 mm x 238.0 mm


Download
There are no downloadable media for this product.
FAQ


There are no FAQ entries for this model.
Optional Accessories

Model #Description

Compatible Motherboards

Model #Motherboard SizeCompany Name
