AN-EX258
Build-to-Order - 8x 2.5" External Storage JBOD Tower

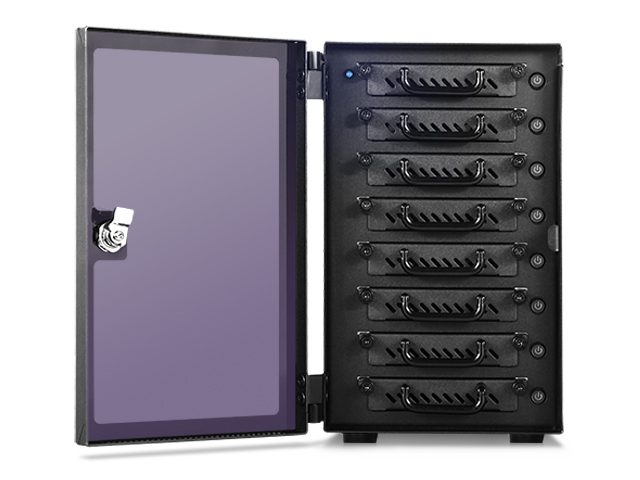

  • Semi-transparent Door with Key Lock Design
  • 8x 2.5" Hotswap Bays
  • Supports 2.5" SAS I/II & SATA I/II/III HDDs
  • HDD Tray with Thumb Screw Design for Easy Swap
  • Two 60mm Cooling Fans for Ventilation
  • Supports 6.0Gb/s Hard Drives
  • 150W Open Frame Power Supply Included

Product Introduction
iSG external multi-bay JBOD tower series are designed specially for storage applications. With iSG hotswap hard drive cage, it is able to hold 8x 2.5" HDDs/SSDs for storing mass data. Two 60mm cooling fans enhance the ventilation inside. The external JBOD storage cases with solid construction are a cost-effective and flexible solution for your critical data storage.


Model NumberAN-EX258
RoHS Compliance VersionYes
Standard Drive Bays Hotswap 2.5": 8
Hotswap HDD Type:2.5" SAS I/II & SATA I/II/III
IndicatorsPower, HDD
SwitchesPower
Expansion Slots2 (Centronics)
SecurityKey Lock
Material of Front BezelSteel
Material of Main ChassisSteel
Color of Main ChassisBlack
Cooling Fan2x60mm
Dimensions (WxHxD)5.31" x 8.39" x 10.76"
134.9 mm x 213.1 mm x 273.3 mm
